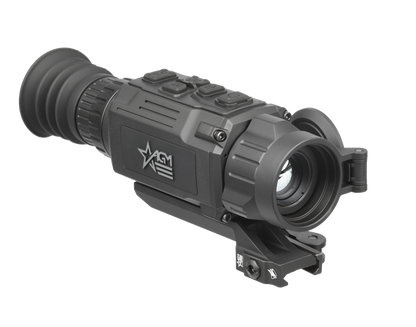

AGM Rattler V2 25-256 Thermal Optic

AGM Rattler V2 25-256 Thermal Optic

Regular price $995.00 USD
Regular price Sale price $995.00 USD
Sale Sold out

The Rattler TS25-256 is a perfect addition to any hunter's arsenal. Equipped with a 25mm germanium lens and a 256x192 resolution thermal sensor, this unit has a detection range of 950 yards, and a base magnification of 3.5X. This base magnification, combined with a wide field of view, makes this scope a truly versatile optic. The Rattler series of thermal scopes were specifically designed to be compact and lightweight, as this not only ensures its small footprint can be used on a multitude of shooting platforms, but also gives the series secondary use as a thermal monocular as well.

This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, 8X digital zoom, Picture-in-picture, AGM Connect app compatibility for storing and sharing images and videos, one-shot digital zeroing process, 4.5 hours of battery life on (2) CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount which quickly allows users to seamlessly shift from riflescope to monocular quickly and easily.





Specifications

Battery life (operating at 20°С)
Up to 4.5 hr
Palettes
Black Hot, White Hot, Red Hot, Fusion


Reticle
5 types, 3 colors, on/off


Drop Test Height
1.5m (4.9 feet)


Boresight Adjustment
Digital Controlled


Boresight Increment
0.17 mil / 0.58 MOA


Distance Measurement
Yes (Stadiametric Rangefinder)


Scene Mode
Jungle, Recognition


Picture In Picture Mode (PIP)
Yes


Hotspot
Yes


Video Recording
Yes


Defective Pixels Correction (DPC)
Yes


Uniformity Correction
Auto, Manual, External Correction


Digital Magnification
3.5x - 28x


Detector type
12μm, Uncooled, 25 Hz


Standby Mode
Yes


Resolution
256 × 192


Detection Range (6' object)
1250m/yd


Snapshot
Yes


Lens system
25 mm; F/1.0


Field of view (H × X)
7.0° × 5.3°


Digital zoom
1×, 2×, 4×, 8×


Eye relief
45 mm


Display
0.39-inch, OLED, 1024×768, 50 Hz


Storage
Built-in EMMC (16 GB)


Battery Type
Two CR123 (3V) Lithium


CVBS Output
Yes (via USB)


External power supply
5 VDC/2 A, USB Type-C interface


Operating Temperature Range
-20°C to +55°C (-4°F to +131°F)


Degree of Protection
IP67


Weight
568 g ( 1.16 lb)


Overall Dimensions
187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)


Package Includes
Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual


Magnification
3.5×
